NFC 34 215 EN 50182 Almelec Bare Conductor Wire 570mm2 For Overhead Lv Cable

Product Categories
Zhengzhou Yifang Cable Co., Ltd
Contact Now

NFC 34 215 EN 50182 Almelec Bare Conductor Wire 570mm2 For Overhead Lv Cable

  • 1
  • 2

Brand Name : Yifang Cable

Model Number : JKLH

Certification : CE,ISO,UL,KEMA

Place of Origin : China

MOQ : 1km

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 500km per month

Delivery Time : 5-8working days

Packaging Details : Wooden drum 1.1mx0.8mx1.1m, Wooden Steel Drum2.2mx1.45mx2.2m

Size : 54.6,93.3,117,228,288,336,507mm2

Standard : NFC 34 215 EN 50182

material : Aluminum Alloy

application : overhead lv or mv power line

Coutry : Senegal,Madagascar,Congo,Burkina Faso

Strands : 7,19,37,61

Contact Now



NFC 34 215 EN 50182 Almelec Bare Conductor Wire 570mm2 For Overhead Lv Cable



Quick Details

· Place of Origin: Henan, China (Mainland)

· Brand Name: Zhengcable

· Model Number: almelec cable with 7,19,37,61,91strands

· Insulation Material: none

· Type: HV MV LV

· Application: Overhead

· Conductor Material: Aluminium alloy

· Jacket: None

· advantage: Resistance chemical corrosion

· advantage1: anti heat-ageing,environment stress

· advantage2: light in weight

· advantage3: especially for laying across

Packaging & Delivery

Packaging Details: wooden drum;wooden_iron drum;iron drum.
Delivery Detail: sample(3d);in stock(10d);general cargo(15d);OEM/ODM(20d)

Product Description

All aluminium alloy conductor, aaac cable with BS,ASTM,DIN,IEC standard

1 Description of aaac cable

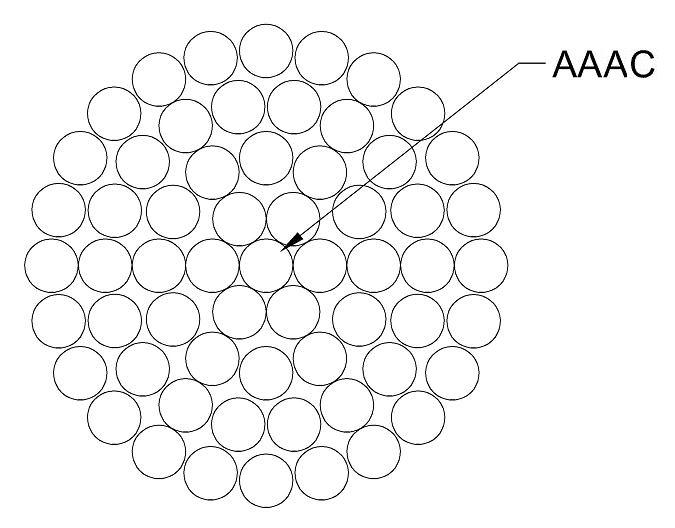

Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.

TECHNICAL DATA SHEET
 Câble Almélec 570 mm² ASTER
NO DESCRIPTION UNIT DATA
1 Type/ code name -- Almelec 570
2 Material -- Aluminium Alloy
3 Standards -- IEC 61089,NFC 34 125,NF EN 50182
4 Cross Section Area mm2 570
5 Conductor construction 　 　
　 Wire No. No.s 61
　 Nominal wire dia. mm 3.45
6 Approx. Overall Diameter mm 31.05
7 Approx. Weight kg/km 1556
8 Min.Breaking Load kN 173.85
9 Max. D.C. Resistant 20℃ Ω/km 0.0587

NFC 34 215 EN 50182 Almelec Bare Conductor Wire 570mm2 For Overhead Lv Cable
