Heavy Duty Power Cable For Submersible Pump Flat Thw 75°C/600v 8/3 Awg

  • 1
  • 2

Brand Name : Yifang

Model Number : SUBMERSIBLE PUMP POWER CABLE

Certification : CE, ISO

Place of Origin : China

MOQ : 1000 meter

Price : USD 1~10 per meter

Packaging Details : Treated Wooden Drum

Standard : UL83

Working Temperature : -40° C to 75° C

Sheath Color : Black

Structure : CU/THW/PVC

Aplication : For wiring within the casing of deep well submersible water pumps

Contact Now

HEAVY DUTY SUBMERSIBLE PUMP POWER CABLE FLAT THW 75°C/600V





Application





 For wiring within the casing of deep well submersible water pumps





Global data





Brand YIFANG





Standard UL 83, UL1581,50175





Design features



Annealed bare stranded copper conductors PVC insulated and run parallel with a PVC black jacket to form a 75°C 600 Volt Multi-Conductor Submersible Pump Cable. UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable.





– Operating temperature range -40° C to 75° C – Resistant to acid, abrasion, alkalis, flame, gas, and oil

– Water and sunlight resistant

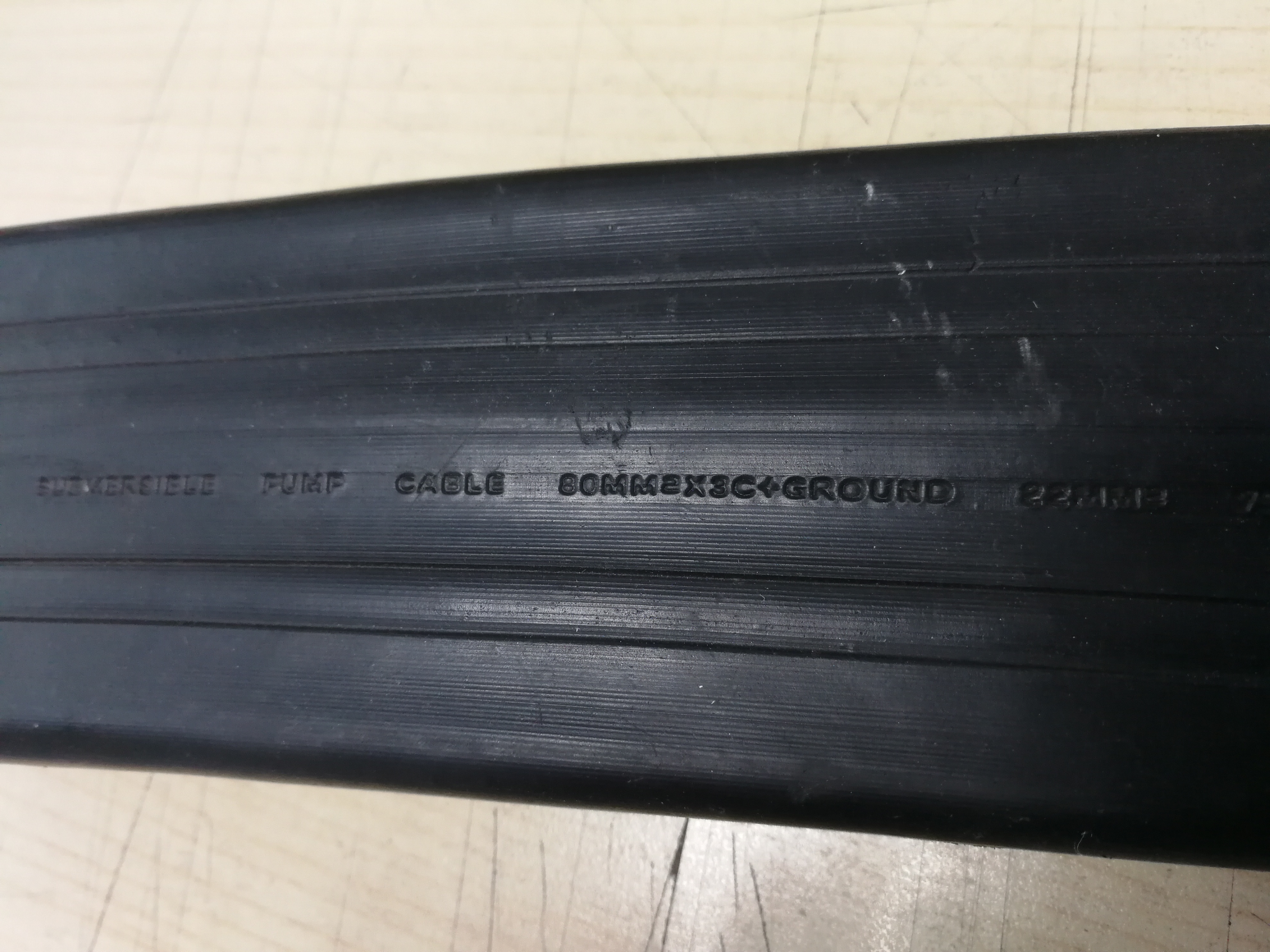

– Cable is sequentially marked

– Special packaging is available upon request





Specification





ITEM DESCRIPTION UNIT PARAMETER PARAMETER
1 Rated Voltage V 600
2 Applicable Standard ---- IEC 60227
3 Phase Conductor
Conductor Material -- Stranded bare copper
Core number of conductor -- 3 3
Conductor Cross-sectional Area AWG 8 10
Stand construction Nos / mm 19/0.75 19/0.60
Conductor Diameter (approx.) mm 3.75 3
DC resistance at 20℃   2.097 3.36
4 Ground Conductor
Conductor Material -- Stranded bare copper
Core number of conductor -- 1 1
Conductor Cross-sectional Area AWG 10 10
Stand construction Nos / mm 19/0.60 19/0.60
Conductor Diameter (approx.) mm 3.0 3.0
5 Insulation
Insulation Material -- THW 75℃ PVC THW 75℃ PVC
Nominal thickness of insulation mm 1.52 1.52
Core Identification -- black, yellow, red, green(ground)
6 Outer Sheath
Outer Sheath Material --- Sunlight resistance Balck PVC
Nominal thickness of sheath mm 1.20 1.20
7 Approximate Dimension mm 26.2 x 9.2 23.8 x 8.4
8 Permissible continuous working temperature of conductor ℃ 70 70
9 Approximate Weight kg/km 576 451

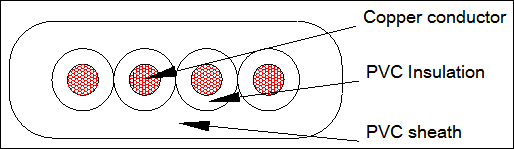

Refernece drawing





Heavy Duty Power Cable For Submersible Pump Flat Thw 75°C/600v 8/3 Awg



Heavy Duty Power Cable For Submersible Pump Flat Thw 75°C/600v 8/3 Awg
