Jacketed Type SOOW Rubber Insulated Cable 90ºC EPDM / CPE , 600 V 2~5 cores

Product Categories
Zhengzhou Yifang Cable Co., Ltd
Contact Now

Jacketed Type SOOW Rubber Insulated Cable 90ºC EPDM / CPE , 600 V 2~5 cores

Brand Name : Yifang

Model Number : Type SOOW

Certification : CE, China MA, ISO

Place of Origin : China

MOQ : 1000 meter

Price : USD 10~100 per meter

Supply Ability : 100000 per month

Packaging Details : Treated wooden drums

Performance : Oil and weather Resistant, mechanical stress Flame-retardant

Rated Voltage (U0/U) : 600 Volt

Sheath Color : Black

Construction : CU / EPDM/CPE

Size : 8AWG to 2AWG

Cores : 2 cores to 5 cores

Contact Now

Jacketed Type SOOW Portable Cord Copper Conductor 90ºC EPDM /CPE, 600 V 2~5 cores

Jacketed Type SOOW Rubber Insulated Cable 90ºC EPDM / CPE , 600 V 2~5 cores

Application

• Portable tools and equipment
• Temporary and portable power
• Motors and associated machinery




Design features



Conductors:
• 8 through 2 AWG fully annealed stranded bare copper
Insulation:
• Color-coded 90ºC EPDM
• Color code: See chart below
Jacket:
• CPE, black


Color Identification:


Core number Color
2 Black, White
3 Black, White, Green
4

Black, White, Red, Green
5 Black, White, Red, Green, Orange





Thermal parameters

  -40ºC to +90ºC




Features

• Excellent resistance to oil and moisture
• Good tensile strength, elongation and aging
characteristics
• High flexibility
• Excellent abrasion resistance
• Ozone-, sunlight (UV)- and weather-resistant


TECHNICAL DATASHEET OF CABLE 600V 90℃ Type SOOW 4x8AWG CU/EPDM/CPE

Item Description Unit Data
1 Rated Voltage KV 0.6/1
2 Number of cores   4
3 CONDUCTOR
Cross sectional area AWG 8
Material   Annealed Stranded bare copper
Strand No.s/AWG 65 / 26
Overall diameter (approx.) mm 3.7
Max. D.C. Resistance at 20 ℃ Ω/km 2.097
4 Insulation
Material   EPDM
Core identify   Black , yellow, red, green(ground)
Nominal thickness mm 1.3
5 Filler Material -- PP Rope
6 Outer sheath
Material   Black 90℃ CPE
Nominal thickness mm 2
7 Complete cable
Overall diameter (approx.) mm 19.3
Weight per km (approx.) kg/km 660

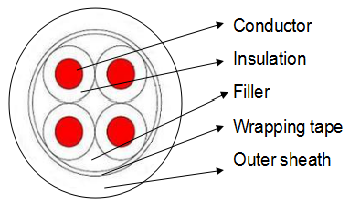

Drawing:

Jacketed Type SOOW Rubber Insulated Cable 90ºC EPDM / CPE , 600 V 2~5 cores
