Flexible Control Cable With Braiding Shield CU/PVC/CWB/PVC 5G1.5mm2

Name: Flexible Control Cable With Braiding Shield CUPVCCWBPVC 5G15mm2
Brand: Yifang
Price: 1 USD

Buy cheap Flexible Control Cable With Braiding Shield CU/PVC/CWB/PVC 5G1.5mm2 product

Brand Name : Yifang

Model Number : KVVRP

Certification : CE, ISO

Place of Origin : China

MOQ : 1000 meter

Price : USD 1~10 per meter

Packaging Details : Treated Wooden Drum

Standard : DIN VDE 0262, IEC 60502 or equivalent

Temperature Range : 0 °C to +80°C

Characters : UV Resistant, extensively oil resistant, oil/chemical resistance

Sheath Color : Black

Structure : CU/PVC/PVC

Sheild : TInned or bare copper wire braiding

Contact Now

0.6/1kV Flexible PVC Insulated Sheathed Control Cable (CU/PVC/PVC) 7G1.5mm2

Flexible Control Cable With Braiding Shield CU/PVC/CWB/PVC 5G1.5mm2

Application

Suitable for control, monitoring, instrumentation applications and Optimized construction for flexing applications with continuous flexing cycles.

Global data

Brand YIFANG

Type designation KVVRP

Standard DIN EN 50525 or equivalent

Design features

Conductor Circular stranded annealed copper, class 5 according to IEC60228

Insulation PVC

Core Identity Phase--numbers or colors; Ground--Yellow / Green

Fillers: Optional

Separator Foil Shield Copper Wire Braiding

Outer sheath: Black PVC

Marking Embossed:(Year of manufacture) Yifang KVVRP (number of cores) x (cross-section) (rated voltage)

Electrical parameters

Rated voltage	300/500 V
AC test voltage	4 kV
Breaking down voltage	8kV
Insulation resistance	≥20 MΩ x km
Coupling resistance	≥250 Ω/km

Thermal parameters

Temperature Range: 0 °C to +80°C

Characters

UV Resistant, extensively oil resistant, oil/chemical resistance

Specification

Item	Description	Unit	Data
1	*Voltage*	V	300/500
2	*Number of cores*		4+1
3	*Phase Core*
3.1	*Conductor Construction*
	Cross sectional area	mm²	1.5
	Max. Diameter of Stranding Wire	mm	0.26
	Max. D.C. Resistance at 20 ℃	Ω/km	13.3
3.2	*Insulation*
3.2	Nominal thickness	mm	1.3
4	*Ground Core*
4.1	*Conductor Construction*
	Cross sectional area	mm²	1.5
	Max. Diameter of Stranding Wire	mm	0.26
	Max. D.C. Resistance at 20 ℃	Ω/km	13.3
4.2	*Insulation*
4.2	Nominal thickness	mm	0.7
5	*Separator*
5	Thickness of Foil	mm	2x0.05
6	*Shield*
6	Rate of Copper Wire Bbraiding cover	%	80
7	*Outer sheath*
7	Nominal thickness	mm	1.1
8	*Complete cable*
	Overall diameter (approx.)	mm	11.8
	Weight per km (approx.)	kg	208
	Minimum Bending Radius	-	10D

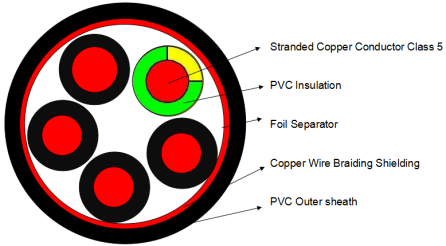

Referenced drawing:

Flexible Control Cable With Braiding Shield CU/PVC/CWB/PVC 5G1.5mm2
